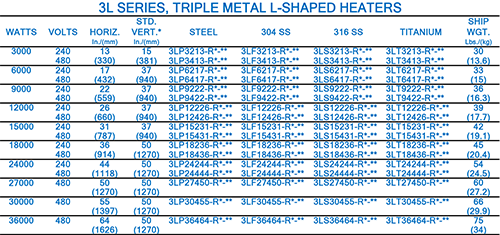

Triple L-Shaped Metal (3LMOTS) Immersion Heater

Steel, 316 & 304 Stainless Steel

Durable, efficient chemical heater.

Features
• Heavy wall metal sheaths available in steel, 304 stainless steel, 316 stainless steel and titanium.
• Watt densities up to 35 watts/square inch (5.4 w/cm²).
• Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
• Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
• Certification: cULus (except steel and 600 volts)

Specifications
• 1000 - 12000 watts
• 120 to 600 volts

Options available (consult factory)
• Resettable thermal protectors
• Lower watt densities for highly viscous solutions.
• Custom configurations and lengths
• Custom wire and conduit lengths

Downloads

3LMOTS Immersion Heater
