Small Tank (B-series) Metal Immersion Heater

Steel, 316 & 304 Stainless Steel

Excellent for laboratory and small tank applications.

Features
• 304 stainless steel, 316 stainless steel or titanium provide protection from most chemistries.
• Low watt densities up to 40 watts/square inch (6.5 w/cm²).
• Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
• P1 thermal protector standard on over the side style for solutions up to 180°F (82°C).
• Available in 1 1/4" NPT threaded fitting (TB Series).
• Grounded internal metal element.
• Certification: cULus and CE compliant.

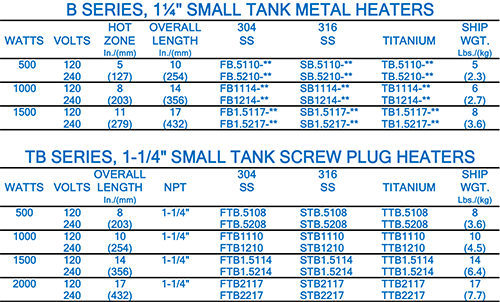

Specifications
• 500 - 2000 watts
• 120 to 415 volts

Options available (consult factory)
• Resettable thermal protectors.
• Custom configurations and lengths
• Pre-wired plug-in connector for easy installation on 500 or 1000 watt, 120 volt only.

Downloads

Small Tank B-series Immersion Heater
