Quartz Single or Triple (QM) Over The Side Immersion Heater

Quartz Immersion Heater

Compatible with many aggressive chemistries.

Features
• Heavy wall quartz sheath with replaceable metal element and polypropylene guards (complete assembly) .
• For use in most aqueous acidic plating solutions and pickling tanks.
• Watt densities up to 25 watts/square inch (4 w/cm²).
• Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
• Grounded construction.
• Replaceable P1 protector standard for solutions up to 180°F (82°C).
• Certification: cULus (except steel and 600 volts)

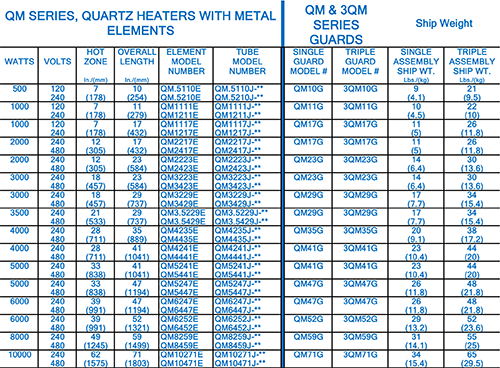

Specifications
• 500 - 30000 watts
• 120 - 600 volts, single or 3 phase.

Options available (consult factory)
• Custom configurations and lengths
• Custom wire and conduit lengths
• Lower watt densities for highly viscous solutions.

Downloads

QM Series Quartz Immersion Heater
