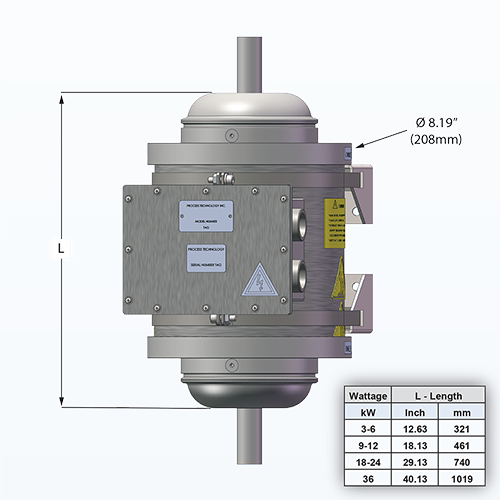

Frontier Inline Solvent/Chemical Heater

Inline Chemical/Solvent Heater

Delivers superior temperature stability and outstanding performance over a wide range of flow and temperature requirements.

Features
• Enhanced features include a non-casted structure, versatile flow rates, an expanded wattage range, and high-quality electropolished surfaces resulting in superior cleanliness.
• Grounded metal construction, multiple element thermocouples, insulated housing, and a hermetically sealed high limit thermal cutoff device (TCO)
• Can be used in single pass or recirculating applications for safely heating chemistries such as: EKC265, EKC830, EKC270, ST28, ST26, ACT690C, MEK, NMP and IPA
• Certification: UL 823, UL 499, CSA 22.2, and CE; rated for Class I, Division 2 hazardous locations.

Specifications
• 3,000-36,000 watts
• 120-600 V, single or three phase
• Pressure range: Up to 100 PSIG (689 kPa)
• Temperature range: Up to 180°C (356°F)
• Fluid Connections: ½-inch (12mm), ¾-inch (19mm), 1-inch (25mm) tube stubs (or custom connections); custom connections available.
• Electropolished 316L stainless steel, PFA and PTFE wetted surfaces, and a fluid pathway through a patented circular tubing array.

Options available (consult factory)
• Custom configurations, connections and controller packages available.
